Highest Quality Parts
Toyota forklift dealers are a one-stop-shop, full service forklift solutions provider.
How to Find Your Equipment Model Number
Finding the right parts for your equipment is easy when you have your model and serial number which can be found on the data plate. Luckily, a forklift data plate is installed on every truck on the market to help you understand what your forklift can do and provide vital information.
Model Number: The model number of your toyota forklift is extremely important for relaying information to your dealers about repair or technical assistance and for looking up replacements part!
Serial Number: The serial number on your lift is the most important number.The model serial number combination will allow us to provide you with the parts that will fit your particular piece of equipment.
How to Find Your Equipment Serial Number
Finding the right parts for your equipment is easy when you have your model and serial number which can be found on the data plate. Luckily, a forklift data plate is installed on every truck on the market to help you understand what your forklift can do and provide vital information.
Model Number: The model number of your toyota forklift is extremely important for relaying information to your dealers about repair or technical assistance and for looking up replacements part!
Serial Number: The serial number on your lift is the most important number.The model serial number combination will allow us to provide you with the parts that will fit your particular piece of equipment.
Need some help? For further assistance or more information, contact your local Toyota Dealer.
Industry Leading Service
Increase your productivity, overall up-time and lifespan of your forklift.
?$DM-responsive-preset-compressed$)

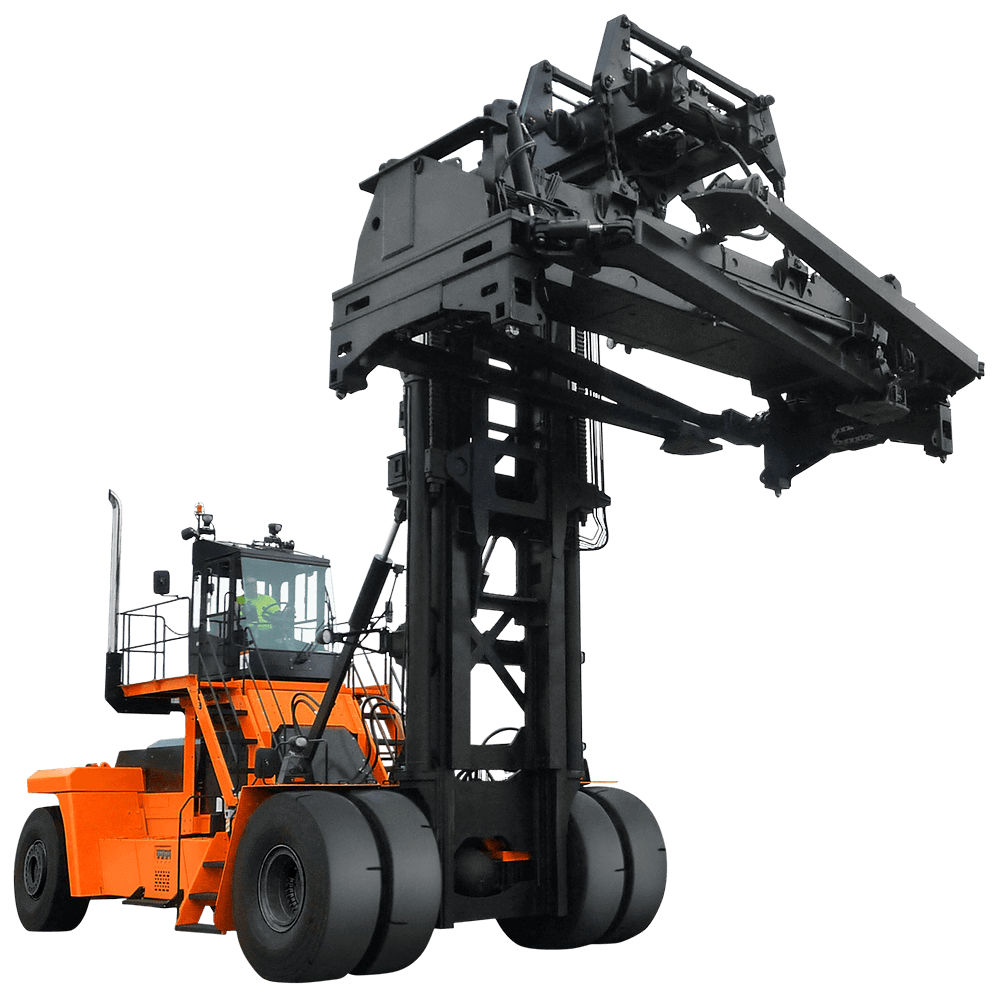

Loaded Container Handler
Toyota's Loaded Container Handler is the king of the port. With a container lifting capacity of up to 90,000 lbs. and the ability to stack up to 6 containers high, this exceptionally stable container handler can be used in the most rugged applications. Popular in ports, terminals and shipping yards, the Toyota Loaded Container Handler will provide fast lifting cycles, high stacking and reduced freight costs.
Models for Loaded Container Handler
| Model | Load Capacity (lbs.) | Max Travel Speed Full Load (MPH) | Max Lift Speed Full Load (FPM) | Max Gradeability Full Load (%) | Basic Right Angle Stack (in.) |
|---|---|---|---|---|---|
| THD8000-L6 | 80,000 (2-High) / 75,000 (6-High) | 20 | 47 | 9.8 | 522 (20' cont.) / 601 (40' cont.) |
| THD8600-L5 | 86,000 (2-High) / 76,000 (5-High) | 19.2 | 47 | 10.7 | 522 (20' cont.) / 601 (40' cont.) |
| THD9000-L3 | 90,000 (2-High) / 90,000 (3-High) | 19.2 | 47 | 11.5 | 522 (20' cont.) / 601 (40' cont.) |
| THD9000-L4 | 90,000 (2-High) / 85,000 (4-High) | 19.2 | 47 | 11.1 | 522 (20' cont.) / 601 (40' cont.) |
* Based on 24" Load center ** Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Performance
King of the Port
Toyota’s Loaded Container Handler is engineered to provide fast lifting cycles, high stacking and reduced freight costs. This forklift offers a wide variety of attachments to fit your material handling needs, including 3-spool main control valve (lift, tilt, attachment), and 4-point top pick twistlock attachments as well as a 2-point side post hook attachment for double stacking of empty containers.
Loaded Container Handler Features
Toyota’s Container Handler comes with a CUMMINS® QSL9 380 hp turbocharged diesel engine and Dana 36,000 powershift transmission with three forward and three reverse speeds. This forklift provides the power you need to perform your most challenging tasks.
From Toyota’s heavy-duty tires and drive axles to our rugged masts and lift attachments, every inch of a Toyota Loaded Container Handler is made to withstand the harsh environments they operate in. Even though the loads are heavier, the terrain is more challenging and the stakes are higher than typical forklift tasks, if it bears the name Toyota, you know you can count on it to get the job done.
Recommended Industries
Options / Accessories
Popular Loaded Container Handler Accessories
Make the most of your Loaded Container Handler by considering additional options and accessories. A Toyota Forklift can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest material handling challenges.
